What to Look for in a PDM API: A Buyer’s Guide to Integration Readiness
Evaluate a PDM API for secure, reliable ERP and business-system integrations: data ownership, events, testing, error handling, and API change control.
TABLE OF CONTENTS
Imagine this integration test: engineering releases Revision B of an assembly, but ERP rejects the BOM because a child item has no unit of measure. The release notification arrives again during a retry. Can the integration flag the rejected update, avoid processing it twice, and show the buyer that Revision B has not reached ERP?
A PDM API can connect engineering records with ERP, procurement, quality, or internal tools. Whether it works in daily use depends on the records it exposes, the access it permits, and how the integration handles changes and failures. Downloading a file proves only a small part of that.
This guide covers five areas to assess before relying on a PDM API for business-critical engineering data. For the related question of what should move from PDM into ERP, see PDM–ERP Integration: How Engineering Data Flows to Procurement.
API access does not solve unclear engineering data
An API exposes data and operations; your team still has to agree on the handoff rules. If part identifiers are inconsistent, revisions are interpreted differently by each team, or no one agrees when a design is released, automation can spread those problems faster.
Start by documenting the engineering handoff in plain language:
- Which system owns the approved part definition and revision?
- What event makes a record ready for procurement or manufacturing?
- Which fields may ERP update, and which must remain under engineering control?
- What happens when a part is superseded, obsolete, or rejected during validation?
Use these answers to define what the integration is allowed to read and change.
1. Permissions and security
An integration should receive only the access it needs. A procurement synchronization service may need to read released parts and drawings, for example, but it should not be able to modify draft CAD data or approve an engineering change. The same least-privilege principle applies to role-based access control in a PDM system.
For the security review, establish:
- Which authentication methods are supported for server-to-server integrations?
- Can access be limited by workspace, project, object type, lifecycle state, or action?
- Can a service account read released records without seeing unrelated projects?
- Are credentials scoped, revocable, auditable, and invalidated safely when a user leaves or a credential expires?
- Are API actions recorded with an actor, timestamp, and affected object?
Authorization must be checked at the object and property level, not only when a user first authenticates. OWASP identifies broken object-level authorization and improper API inventory management among common API security risks. OWASP API Security Top 10 is a useful baseline for a security review. For OAuth-based access, RFC 9700 documents current security guidance.
Test the boundary with a restricted credential. It should retrieve the intended released record, while requests for unrelated projects or unauthorized changes should fail.
2. Data objects and the system of record
For an ERP handoff, downloading a CAD file is not enough. The receiving system needs to identify the part, its applicable revision, and the BOM or drawing that belongs with it. Check the API’s data model against the records your workflow actually uses:
Object or field | Question for the buyer | Why it matters |
Part or item | Is there a stable identifier that remains meaningful across revisions? | ERP and procurement need to identify the correct operational record. |
Revision and lifecycle state | Can the integration distinguish draft, reviewed, released, superseded, and obsolete states? | Downstream systems should not treat work in progress as approved engineering data. |
BOM | Can the integration retrieve the agreed BOM structure, quantities, and units of measure? | Teams need a clear basis for deciding which BOM belongs in an operational workflow. |
Files and drawings | Can the API provide controlled references to the released drawing or specification? | Buyers and suppliers need a traceable route to the applicable document. |
Can a changed or superseded record be linked to the reason and approval context? | Procurement needs to understand when an approved change affects existing orders or stock. |
The goal is not to duplicate every PDM field in ERP. Define a system of record for each shared field before mapping it. For example, engineering can own the approved revision and release state, while ERP owns supplier, cost, lead time, inventory, and purchase orders.
In the demo, follow one part from its released revision to the associated drawing and assembly. That reveals more about the data model than a flat list of files.
3. Events, webhooks, and reliability
Polling an API can be useful for scheduled reporting or small-volume updates. For a release-driven workflow, teams also need to know how downstream systems learn that something important changed.
The relevant event is often not “a file was saved.” It may be a part reaching its released state, a released revision being superseded, or an ECO being approved. Ask:
- Which events can trigger a notification or be queried reliably?
- Does each event contain a stable event ID, timestamp, object ID, revision, and lifecycle state?
- Can consumers tell whether an event was delivered more than once or received out of order?
- What delivery, retry, and timeout behavior is documented?
- Can the receiving system retrieve the current released record after it receives a notification?
- Are there audit logs or correlation IDs to trace one failed handoff across systems?
Engineering integrations need to tolerate duplicate events and retries. A retry after a network timeout must not create duplicate ERP items or apply the same BOM update twice. Stripe’s webhook guidance documents automatic retries, duplicate-event handling, and event-ordering considerations (in a payments context, but with delivery patterns that apply to event-driven integrations more broadly).
Before production, demonstrate what happens when ERP is unavailable or rejects an update. Some recovery controls may belong in middleware or the receiving application rather than the PDM API. Establish who supplies and maintains them.
4. Testing and a controlled proof of concept
A safe test environment is one of the strongest signals of integration readiness. It lets you validate data and permissions without modifying live engineering or ERP records.
Look for:
- A sandbox, test workspace, or non-production tenant;
- Test credentials that follow the same permission model as production;
- Clear sample data or a small representative product;
- Documentation for errors, rate limits, and pagination;
- A way to test deleted, revised, obsolete, and restricted records;
- A controlled process for promoting an integration from test to production.
Choose one released assembly for the read-only test. Check its identifier, revision, lifecycle state, BOM, and document links against the engineering source. In test data, include a missing child reference, a duplicate identifier, a superseded revision, and restricted access. For each case, record the expected result and compare it with the response.
Only after that read-only path is understood should the team consider creating or updating operational records automatically.
What to ask a vendor to demonstrate
During a focused proof of concept, ask the vendor to demonstrate:
- A documented request and response for one released part or assembly, including its revision, lifecycle state, and related records;
- A restricted integration credential and a non-production workspace or sandbox;
- How a release event is delivered, traced, retried, and recovered when the receiving system is unavailable;
- The API version, change log, and deprecation policy that would apply to the integration.
A practical pass/fail test
Use the same Revision B scenario from the beginning of this guide. In a non-production environment, submit a released assembly whose BOM contains a missing unit of measure, then simulate a duplicate release notification.
The test should demonstrate four outcomes:
- Validation: ERP rejects the incomplete BOM with an identifiable error.
- Duplicate handling: The repeated event does not create duplicate ERP records or result in duplicate application of the same BOM update.
- Visibility: The integration provides a traceable status showing that the Revision B update was rejected by ERP and has not been successfully synchronized.
- Recovery: After the missing field is corrected, the update can be retried safely and its successful acceptance verified.
Record which system provides each capability. Validation may happen in ERP, duplicate protection in middleware, and release-state tracking in the integration layer. The buyer should evaluate the complete workflow rather than assume the PDM API provides every control.
5. Error handling and version governance
Once an integration is in daily use, someone has to investigate failed updates and maintain it through API changes. Include that person in the evaluation.
Ask about error handling:
- Are error responses structured and specific enough to identify the failed object and reason?
- Is there a correlation ID or request ID for support and audit investigations?
- Can failed records be replayed after the root cause is fixed?
- Is there a visible exception queue, alert, or export for records that need human review?
- Are transient failures distinguished from invalid data or permission failures?
Also ask about API change management:
- Is the API versioned?
- How are breaking changes announced?
- Is there a deprecation period?
- Are release notes and migration guidance available?
- Can the integration contract be tested before a new version is required?
Google AIP-185 provides a useful example of explicit version identifiers and documented stability levels. The specific versioning strategy may differ by vendor, but buyers should expect the lifecycle to be clear before production use.
A mature integration process treats failed validation as a visible exception. It should not silently skip a BOM update, overwrite a newer record, or leave the team to discover the issue through a purchasing error.
A practical PDM API evaluation
Use this three-step framework to evaluate a PDM API for production use. A “no” does not automatically rule out a vendor, but it shows what must be resolved before production use.
- Define the handoff. Agree on the business event, system of record, and minimum data required for the workflow.
- We have clear ownership, stable identifiers, a defined revision policy, and a lifecycle state for downstream use.
- Access is scoped and auditable.
- The API provides the records and relationships the workflow requires.
- Run a controlled proof of concept. Test one released product, scoped access, and the failure cases the integration must handle in production.
- We have run a non-production PoC.
- Events, duplicate deliveries, and retries can be traced and recovered safely.
- Set production controls. Define monitoring, exception ownership, support escalation, and API change management.
- Version and change management are documented.
- Clear ownership is assigned for unresolved dependencies and post-launch failure handling.
Record the test results and unresolved dependencies before committing to production.
Frequently asked questions
Q: What makes a PDM API integration-ready?
A: An integration-ready PDM API supports a clearly defined engineering data model, scoped and auditable access, reliable access to released records, a safe test path, diagnosable failures, and a documented approach to API version changes. Endpoint count alone is not a useful measure.
Q: Is a REST API enough for PDM–ERP integration?
A: A REST API can support many PDM–ERP workflows when the team has clear identifiers, data ownership, and a release process. Also assess how changes are discovered, retries handled, and whether the API exposes the relationships and lifecycle information the workflow requires.
Q: What should we test in a PDM API proof of concept?
A: Begin with one released product. Verify access to the correct identifier, revision, release state, relevant BOM data, and controlled documentation. Then test error cases such as an invalid child item, a duplicate record, an obsolete part, a changed permission, and a retried request.
Planning a PDM integration? Book a demo to discuss your engineering data workflow and integration requirements with CAD ROOMS.
References
- OWASP API Security Top 10
- RFC 9700: Best Current Practice for OAuth 2.0 Security
- Stripe Documentation: Webhooks
- Google AIP-185: API Versioning
About the author
Christina Rebel
CEO of CAD ROOMS | Co-founder of Wikifactory
I’m Christina Rebel, CEO of CAD ROOMS. For over a decade, I’ve worked at the intersection of cloud engineering collaboration, digital manufacturing, and distributed product development.
Throughout my career, I’ve worked closely with engineers, designers, and manufacturing teams to improve CAD data management, version control, supplier collaboration, and browser-based design review. My focus is on making modern engineering workflows more accessible, secure, and efficient, particularly for SMEs and startups.
I also write about engineering collaboration, with contributed articles published by Design News and DEVELOP3D.
Follow the author: LinkedIn
Related articles
- PDM–ERP Integration: How Engineering Data Flows to Procurement
- PDM Workflow Explained: Revision Control, Approvals and Release
- ECO Meaning in Engineering: A Complete Guide to Engineering Change Orders
- Engineering Change Orders and ERP: Preventing Procurement from Using Obsolete Parts
- What Makes Engineering Data AI-Ready?

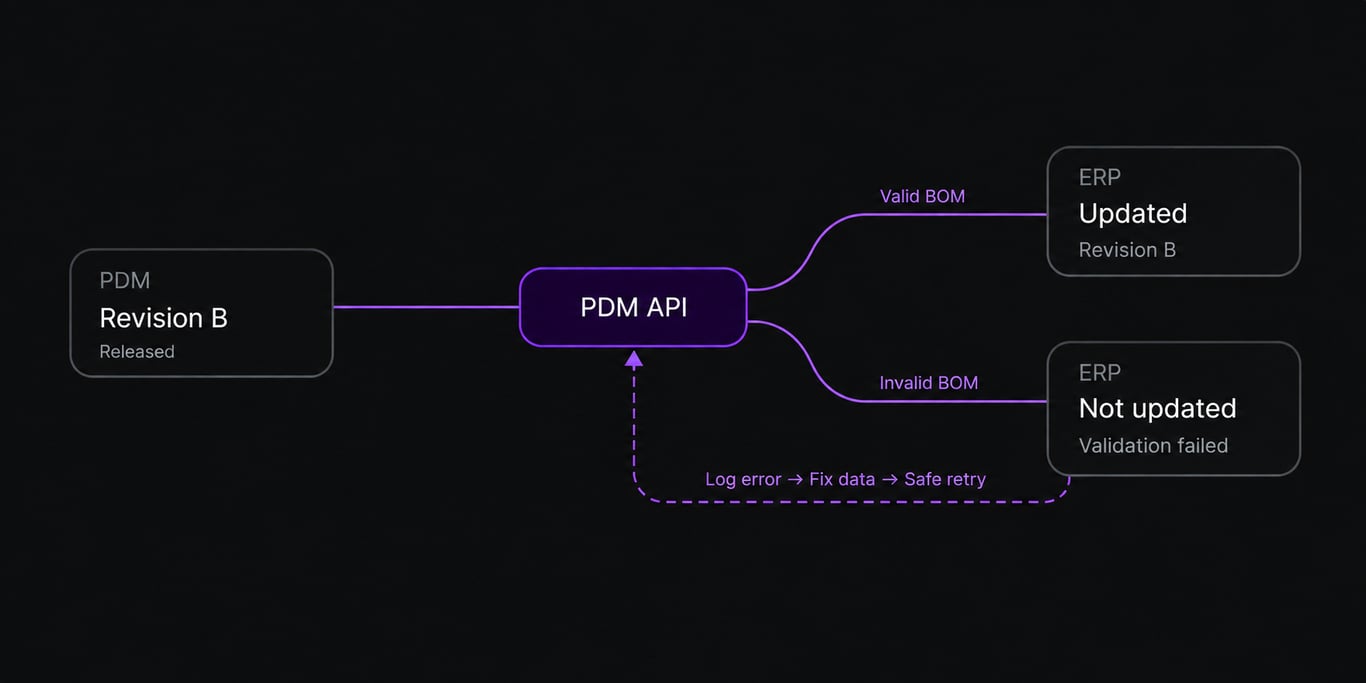

PDM API integration diagram showing Revision B released from PDM, successful ERP updates for valid BOM data, and error logging, data correction, and safe retry when BOM validation fails.
