PDM–ERP Integration: How Engineering Data Flows to Procurement

PDM–ERP integration should transfer controlled, released engineering data to procurement and manufacturing—not every work-in-progress CAD change. The engineering system of record should own the approved part definition, revision, release state, associated files, and change history. ERP typically manages purchasing, inventory, planning, costing, and execution. Before synchronizing data, teams should agree which system owns each record and BOM type.

A design can be correct in engineering and still create a purchasing problem. Revision B is released, but procurement orders against Revision A. A BOM changes, but the spreadsheet used to update ERP does not. A component becomes obsolete in one system, while the other still treats it as current.

These are ownership, timing, and change-control problems as much as data-transfer problems. This guide explains how released parts, revisions, BOMs, and engineering changes can move from engineering into procurement without creating conflicting records. If your team is still deciding whether SharePoint is sufficient for active CAD work, see PDM vs SharePoint for CAD Files: When Is SharePoint Enough?.

PDM and ERP have different responsibilities

PDM manages engineering context: CAD files, relationships between parts and assemblies, revisions, release decisions, and engineering changes. ERP manages operational records such as purchasing, inventory, suppliers, costing, and production planning.

Both systems may contain a part number, description, revision, or BOM. The important question is which system is authoritative for each field and which team can change it.

Data or decision	Typical system of record	Why
Native CAD files and engineering drawings	PDM	They belong to the design record and its revision history
Engineering revision and release status	PDM	Engineering controls when a design is approved for downstream use
Engineering BOM structure	PDM or an associated engineering BOM system	The structure reflects design intent
Item purchasing status	ERP	Procurement controls whether and how an item can be purchased
Supplier, lead time, cost, and inventory	ERP	These are operational and commercial records
Work orders and production planning	ERP	They belong to manufacturing execution and resource planning
Engineering change rationale and approval	PDM or PLM	The engineering record should explain why the released design changed

BOM ownership also depends on the type of BOM. An engineering BOM (EBOM) represents design intent. A manufacturing BOM (MBOM) represents how a product will be built. They may have different structures, owners, and requirements, so teams should define how they relate and how approved changes are reconciled.

Use release as the handoff point

A common approach is to keep draft engineering work within the engineering workflow and send downstream data after an agreed release or approval point. This helps procurement distinguish an approved record from a design that is still changing.

Work in progress → Engineering review → Approval → Release → ERP handoff → Procurement and manufacturing

The exact approval process varies by company. Some teams use a lightweight release; others require an ECO and a documented review. Whatever the process, the organization needs a clear definition of "released" and a rule for when downstream teams may act on the data.

Without a defined release trigger, teams often rely on manual spreadsheet exports to move BOMs into ERP. That can work at low volume, but it makes it easy for engineering, the spreadsheet, and ERP to drift out of sync when a revision or BOM changes.

For more on the stages before release, see PDM Workflow Explained: Revision Control, Approvals and Release.

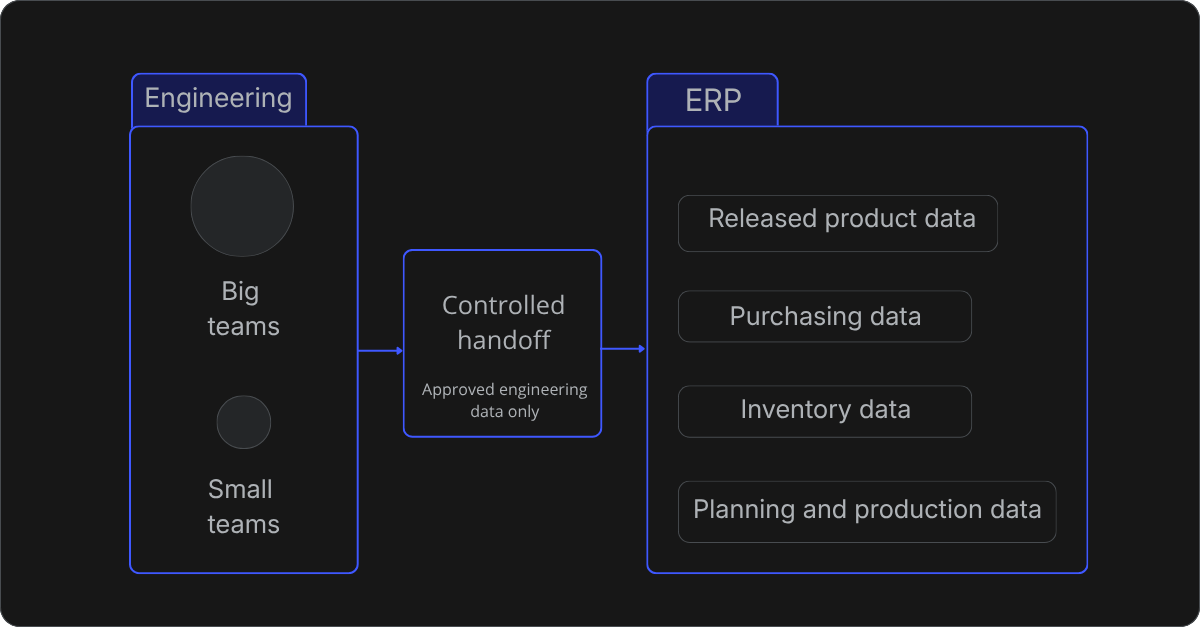

Illustration showing PDM–ERP integration, where released engineering data moves from PDM to ERP for procurement and manufacturing use. — A controlled PDM-to-ERP handoff helps procurement use the correct released data.

The handoff: what moves and how

The release package needs enough information for ERP and procurement to identify the correct operational record. Depending on the workflow, that may include:

Part or item number and description
Approved revision and release status
BOM structure, quantities, and units of measure, where applicable
Links to controlled drawings or specifications
ECO or change reference when a release replaces an earlier record

The goal is not to copy every available property into ERP. It is to transfer the information needed for a defined purchasing or manufacturing decision, while keeping ownership clear.

A controlled handoff typically follows three steps:

Release. Engineering approves the record and publishes the agreed data as a controlled release, with any ECO reference and the required drawings or specifications attached.
Validation. Before updating ERP, the process checks whether the item already exists, whether the incoming revision is newer, whether the part is released or obsolete, and whether the BOM references valid child items. A failed validation should create a visible exception, not a duplicate item.
ERP and procurement use. ERP creates or updates the corresponding item, revision, and BOM records according to the agreed mapping; operational fields such as supplier, cost, lead time, and inventory remain under ERP ownership. Procurement works from the approved revision, with a clear path to resolve exceptions.

If any of these answers still depends on a side spreadsheet or email thread, the integration has not yet solved the handoff problem.

How engineering changes affect procurement

The initial release is only part of the handoff. A later change may affect a part that has already been purchased, is in stock, or is being used in production.

An ECO can provide the engineering context for a change, such as the affected parts, previous and new revisions, and reason for the change. Procurement and manufacturing may then need to assess operational questions: whether existing stock can still be used, whether open orders are affected, and when a new revision should take effect.

Consider a hypothetical example: a bracket moves from Revision A to Revision B after procurement has already placed an order against Revision A. Publishing Revision B to ERP is only the first step. The team still has to decide whether the open purchase order is modified or kept, whether remaining Revision A stock can be consumed, and from which production batch Revision B becomes effective.

Those decisions depend on the company's process. The integration should make the approved change visible to the people responsible for acting on it, while preserving the distinction between engineering decisions and operational decisions.

For an overview of ECOs, see ECO Meaning in Engineering: A Complete Guide to Engineering Change Orders.

Why PDM–ERP integrations fail

Not every integration failure is a technical one. Many break down because the organizational handoff was never defined clearly in the first place. Four patterns show up repeatedly.

Multiple systems claim ownership of the same field. When PDM, ERP, and a side spreadsheet all treat the part number or revision as something they can change, every sync creates a new conflict. The system updated last wins, not the one that is correct.

Sync fires on every save instead of at release. Pushing every in-progress CAD change into ERP floods procurement with records they cannot act on. Buyers either ignore the feed or chase phantom revisions. A defined release trigger is what separates engineering intent from an operational decision.

The ECO moves the record but not the responsibility. The design change is reviewed, approved, and marked current in PDM, but no one assesses the open purchase order, the Revision A stock, or the supplier who already received the old drawing package. The integration moved data, not accountability.

Validation failures are silent. When an incoming record fails a check—duplicate part number, missing BOM parent, invalid unit of measure—the integration either skips it or creates a duplicate item. Exceptions should be visible to a named owner, not swallowed by a log.

Choosing an integration approach

The right approach depends on the systems involved, the volume of releases and changes, and who will maintain the connection. A practical starting point is a one-way flow from PDM to ERP, expanded to two-way synchronization only when field ownership and conflict rules are clearly defined.

Whatever the architecture, start with a scoped release handoff: procurement should be able to identify which revision applies, locate the released drawing or specification, and know who to contact when a record fails validation. From that foundation, the integration can grow to cover more systems and feedback paths as the business needs them.

Planning a PDM–ERP project? Talk to CAD ROOMS about your engineering data workflow.

Frequently asked questions

What data should move from PDM to ERP?

Transfer the released engineering data that downstream teams need, such as item identifiers, approved revisions and statuses, relevant BOM information, change references, and links to controlled drawings or specifications. Define which system owns each shared field before automating the handoff.

Should PDM and ERP synchronize every engineering revision?

Usually, teams should define a release or approval point for operational use rather than sending every draft change to ERP. If procurement needs early visibility, distinguish a notice about a proposed change from an approved record.

Who owns the BOM when PDM and ERP are connected?

There is no universal owner for every BOM. Define ownership by BOM type and process. An EBOM may be managed in the engineering system, while an MBOM may be managed in a manufacturing-focused PLM or ERP workflow. Also define how changes are reconciled between them.

What is the difference between an EBOM and an MBOM in a PDM–ERP integration?

An engineering BOM (EBOM) represents design intent and typically originates in the engineering system. A manufacturing BOM (MBOM) represents how the product is built, including process steps, consumables, and approved alternates, and is often maintained in ERP or a manufacturing-focused PLM workflow. The two may share many items but can differ in structure, quantity, or substitutes. In an integration, decide where each BOM is authoritative and how approved engineering changes propagate to the MBOM, rather than assuming the two mirror each other.

Do we need PLM to integrate PDM with ERP?

Not necessarily. Teams with a straightforward release process and limited change volume can connect PDM directly to ERP, using the PDM release and ECO workflow as the system of record for engineering decisions. PLM adds value when change control spans multiple disciplines, regulated workflows, cross-site configuration management, or deeper MBOM governance. The decision depends on process complexity and compliance requirements, not on the fact that an ERP is being connected.

How do we handle ERP integration with multiple CAD systems?

In a multi-CAD environment, the integration should use the released engineering record rather than rely on a specific native CAD format. Define a consistent item identifier, approved revision, release status, and links to the controlled drawing or specification that ERP users need. Keep native CAD files and working file paths in the engineering system, where their relationships and access permissions can be controlled.
