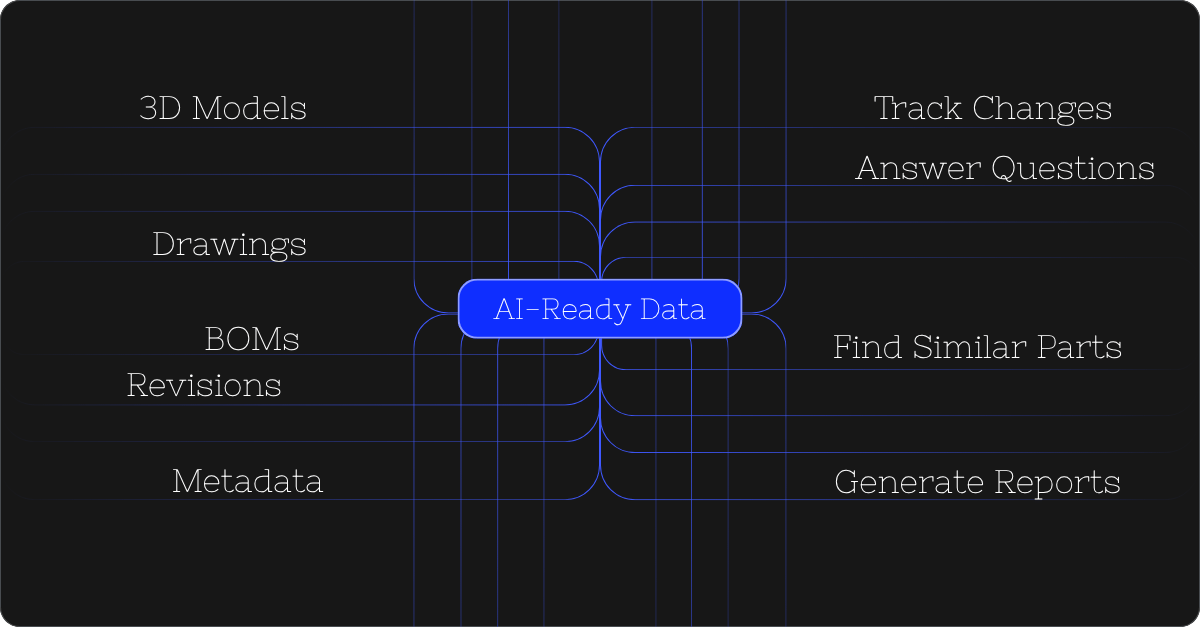

What Makes Engineering Data AI-Ready?

Learn what makes engineering data AI-ready, from CAD versions and BOM relationships to lifecycle states, ECO history, permissions, and system integration.

Christina Rebel

Oct 16, 2026

Cloud PDM

AI is becoming part of everyday engineering work, from CAD modeling and drawing automation to design analysis. SOLIDWORKS 2027, for example, highlights AI Virtual Companions such as LEO, which helps engineers diagnose assembly performance issues, and AURA, which provides access to engineering knowledge and documentation.

But making an individual design task faster is only part of the challenge. When engineering information moves between design, procurement, manufacturing, and suppliers, teams need to know which revision is approved, which BOM applies, and whether the information is reliable enough to support a decision.

Consider a folder containing several versions of the same CAD assembly. An AI model may be able to analyze the files, but without the relevant product records, it cannot reliably establish which configuration has been released, which components belong to it, or what changed in the latest Engineering Change Order (ECO).

This is the difference between having digital engineering files and having AI-ready engineering data. The latter connects CAD files to revisions, product structures, lifecycle states, engineering decisions, and access permissions, giving AI systems the context needed to produce reliable answers across engineering workflows.

What does "AI-ready engineering data" mean?

AI-ready engineering data is product information that can be reliably discovered, interpreted, related, and governed — by both people and software. In practical terms, an AI system should be able to answer things like:

What is the latest approved revision of this part?
Which assembly uses this component?
What changed between revisions?
Is this file still work-in-progress, or has it been released?
Which BOM corresponds to the released design?
Which Engineering Change Order caused the revision, and who approved it?
Which suppliers or downstream processes might be affected?
Does the user asking even have permission to see this information?

A CAD file alone doesn't contain any of those answers. The context sits across PDM, PLM, BOM, ERP, requirements, quality, supplier, and workflow systems — which is why engineering-software vendors increasingly talk about connected product context rather than AI in isolation. Siemens, in its AI-in-PLM guidance, describes AI as operating inside product structures, engineering changes, requirements, configurations, manufacturing processes, and quality information. Autodesk's Fusion Data MCP Server takes a similar line, connecting AI tools to project data including permissions, folders, and project structure.

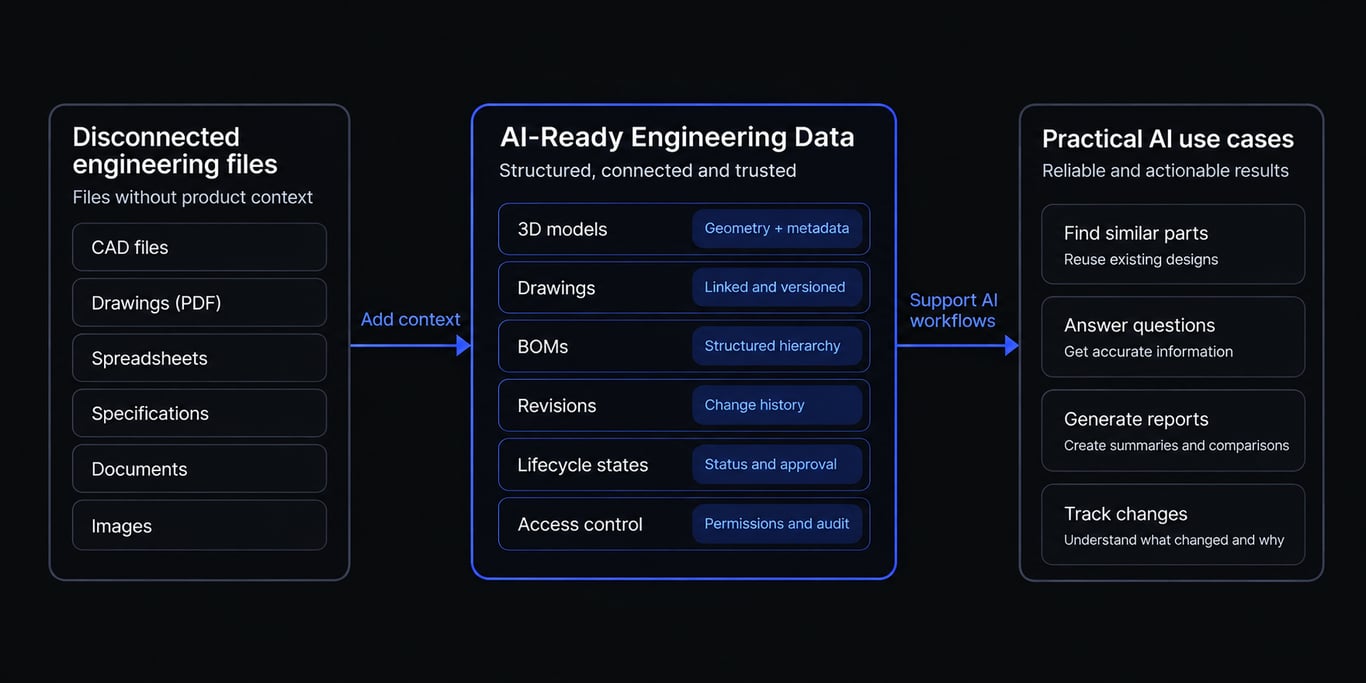

Diagram comparing standalone engineering files with structured, connected engineering data and illustrating potential AI use cases. — Engineering data becomes more useful for AI when files are connected to structured product information, revision history, lifecycle states, and access controls.

The underlying principle is pretty simple: better engineering AI starts with better engineering data.

1. The data needs a clear source of truth

Engineering teams usually have the same information stored in several places. A CAD filename can easily appear in:

a local working folder
a shared drive
a PDM system
an exported ZIP
an email attachment
a supplier portal
an ERP system

A person who knows the project can usually work out which copy is current. An AI system can't safely make that call.

AI-ready engineering data needs a clear system of record. For example: PDM may own CAD files, revisions, release status, and engineering history; PLM may manage engineering changes, approvals, and broader product structures; ERP may own purchasing, inventory, suppliers, cost, and production planning. The exact ownership model varies between companies. What matters is that ownership is explicit.

If two systems both look authoritative for the same revision or BOM without clear governance, an AI assistant can retrieve conflicting information and still return a confident answer. That's a data-governance problem dressed up as an AI problem.

2. Versions and revisions need to be explicit

One of the most important pieces of engineering context is time. Products evolve, and a component may exist as A.1 → A.2 → A.3 → B.1 — but those revisions don't all mean the same thing. Some are internal design iterations; others are formally released configurations.

An AI system needs to distinguish:

working versions from released revisions
current data from superseded data
approved designs from proposed changes
historical configurations from the manufacturing baseline

Without that distinction, asking "What material does this bracket use?" can return the material from the latest working version while production is still manufacturing the previously released revision. For low-risk search that's inconvenient. For procurement, manufacturing, quality, or compliance decisions, it gets expensive fast.

So AI-ready engineering data needs version and revision history that's machine-readable, traceable, and connected to the relevant release state. See What Is Version Control in Engineering? for the practical distinction between version history and controlled revisions.

3. Files need relationships, not just metadata

Engineering products are networks of relationships, not collections of independent files. A component may link to a parent assembly, drawing, STEP export, specification, BOM line, ECO, supplier, manufacturing process, and product variants.

Those links let AI assess the scope of a change. For example:

"If we replace this motor, which assemblies and drawings should be reviewed?"

The answer requires explicit relationships: Part → Assembly → BOM → Revision → ECO → Release. Siemens' AI-in-PLM write-up links connected lifecycle relationships to impact analysis and decision-making.

4. Product data needs enough structure to be interpreted

Relationships tell AI how records connect; structured fields tell it what each record means. Beyond CAD geometry, useful fields can include part number, description, revision, lifecycle status, material, BOM quantity, release date, owner, ECO number, approval status, and supplier reference.

The fields do not need to be identical across companies, but they should be predictable rather than hidden in filenames, folders, emails, or an engineer's memory. Compare:

Bracket_final_v7_NEW_USE_THIS.step
PN-10482 | Revision B | Released | 2026-09-18

The second record makes its identity, revision, and release state available for consistent interpretation. Even lightweight structure around files, revisions, assemblies, lifecycle states, and changes gives a small team a more reliable starting point than unmanaged folders. That is the practical basis of engineering data management day to day.

5. Lifecycle state matters as much as file content

An AI system shouldn't treat every engineering file as equally authoritative. A product lifecycle moves through states — work-in-progress → review → approved → released → superseded — and those states change what the data means. A controlled PDM workflow makes the states visible and gives releases a clean handoff point.

A prototype under review shouldn't automatically become the source for a production purchase order. A superseded drawing shouldn't be presented as the recommended manufacturing reference just because its text matches a search query more closely.

This matters more as AI moves from answering questions to taking actions. Autodesk’s Fusion MCPs Overview illustrates this direction: a local Fusion MCP server can inspect an active document and execute commands inside a running Fusion session. Once AI can act rather than only answer, state awareness becomes a control mechanism — the agent needs to know the difference between "this file exists" and "this revision is approved for manufacturing

6. Change history needs to preserve the "why"

Engineering history should explain more than what changed; ideally it also preserves why. Say an AI assistant is asked:

"Why was this housing wall thickness increased?"

A geometry diff will reveal that the wall got thicker. But the useful engineering answer could depend on a supplier manufacturing issue, a failed test, an ECO discussion, a compliance requirement, a reviewer comment, or a previous field failure. That context typically disappears when engineering decisions live scattered across meetings, Slack threads, spreadsheets, email, and loose file folders.

Structured ECOs, revision descriptions, approvals, annotations, and audit history give AI systems a much richer basis for reconstructing engineering decisions. It also changes the role of PDM and PLM: they aren't just file stores, they become part of the context layer that ties a product's current state back to the decisions that got it there.

7. Permissions and governance must travel with the data

Making engineering data accessible to AI doesn't mean making all engineering data accessible to everyone. Product data can include intellectual property, unreleased designs, supplier information, customer-specific configurations, controlled technical data, and commercially sensitive documents.

An AI-ready system has to respect the same access boundaries as the underlying engineering environment. If a user normally can't access a project, an AI assistant shouldn't expose information from that project just because the model can retrieve it.

The same logic applies when AI starts performing actions. Search permissions, modification permissions, approval authority, and release authority are all different things. An engineer being allowed to ask "What changed in revision C?" doesn't mean an AI agent should be allowed to release revision D on their behalf.

Good AI readiness therefore includes identity, role-based access, least-privilege permissions, auditability, approval boundaries, and traceability of AI-assisted actions. This aligns with the NIST AI Risk Management Framework, which treats governance and risk management as ongoing parts of trustworthy AI use.

8. Engineering data needs to be accessible across systems

Few engineering companies run entirely inside one application. Product information typically spans CAD → PDM → PLM → ERP → MES → supplier systems, and for AI to support workflows across those boundaries, systems need reliable ways to expose the right data and events.

Depending on the architecture, that may involve APIs, webhooks, event-driven integration, middleware, controlled exports, or product knowledge graphs. The goal isn't to copy every piece of information into one giant database. A better pattern is usually to keep clear ownership while making trusted context available on demand — the released revision from PDM, the approved BOM from PLM, current supplier availability from ERP. The systems stay separate systems of record, but together they feed a connected engineering context.

A practical AI-readiness checklist

Before evaluating engineering AI tools, assess the condition of the product data itself. Ask:

Can we identify one authoritative version or revision of every important engineering item?
Can we tell whether an item is WIP, approved, released, or superseded?
Are CAD files connected to their assemblies and related product data?
Are part numbers, revisions, BOMs, and lifecycle states stored in structured fields?
Can we trace significant changes back to an ECO, approval, or decision?
Are access permissions clearly defined?
Can downstream systems distinguish released engineering data from working data?
Can systems expose the necessary data through reliable interfaces when integration is required?
Can a user verify where an AI-generated answer came from?
Would an engineer trust the underlying data even without AI?

That last question might be the most important one. If engineers don't trust the source data, adding AI won't fix the problem — it may just return unreliable information faster.

PDM, PLM, and the AI foundation

PDM and PLM systems were built to address practical engineering challenges: managing CAD files, controlling revisions, coordinating changes, and keeping product information consistent across teams. These same capabilities are becoming increasingly important as companies explore AI-assisted engineering workflows.

The value isn't simply that product data is stored digitally. It's that engineering information has enough structure and governance for software to distinguish approved designs from work in progress, understand relationships between components, and trace decisions back to their source.

That doesn't automatically make every PDM or PLM platform AI-ready. Teams still need to assess data quality, system integration, permissions, and whether a proposed AI application solves a meaningful business problem.

The starting point is straightforward: make engineering data trustworthy before expecting AI to act on it. With reliable product context in place, AI can move beyond searching individual files toward supporting more informed engineering decisions.

Frequently asked questions

Q: Is a folder of CAD files AI-ready?

A: Usually not on its own. An AI system also needs reliable information about revision, release state, ownership, relationships, and permissions. A folder can be a convenient storage location, but it rarely provides enough controlled context for engineering decisions.

Q: Does AI-ready engineering data require an enterprise PLM system?

A: No. The goal isn't to build a large taxonomy for its own sake. A smaller team can make real progress by controlling CAD files, revisions, release states, assemblies, BOM relationships, change history, and access permissions.

Q: Should AI be allowed to use work-in-progress CAD data?

A: It can be useful for draft search or design assistance, but the system should clearly distinguish WIP from released data. AI outputs used for purchasing, manufacturing, quality, or compliance should be grounded in the applicable controlled release.

Q: How can a team verify an AI-generated engineering answer?

A: The answer should identify the source records it relied on — part or document ID, revision, lifecycle state, and the related change record where relevant. A confident answer without traceable source context shouldn't be treated as an engineering authority.
