Can you use Git or SVN for CAD files? What works, what breaks, and when to use PDM
Can you use Git or SVN for CAD files? What works, what breaks, and when to use PDM
Git and SVN can store CAD revisions, but they do not automatically understand CAD geometry, assemblies, references, or engineering release workflows. This guide explains when general-purpose version control is enough and when a CAD-aware PDM system becomes more practical.
Short answer: Yes, Git or SVN can version CAD files—but only within certain limits. Git LFS improves large-binary storage, while SVN offers centralized versioning and file locking. Neither system natively understands CAD geometry, assemblies, drawings, references, approvals, or supplier review. As collaboration and design complexity increase, a CAD-aware PDM system usually becomes more practical.
Engineering teams often ask a reasonable question: Can we use Git or SVN to manage CAD files instead of implementing a PDM system?
Git and Apache Subversion can both preserve historical file versions, record who changed a file, attach change notes, and restore earlier revisions. However, native mechanical CAD files are not source code. They are commonly binary, can contain complex relationships between parts, assemblies, and drawings, and usually cannot be merged like text files.
The most useful distinction is:
Git or SVN as a controlled release archive: often practical for approved snapshots, especially when the team already understands version control.
Git or SVN as a daily CAD collaboration system: possible in limited workflows, but increasingly difficult as assemblies, contributors, suppliers, and approval requirements grow.
Why engineering teams consider Git or SVN for CAD
Git and SVN are attractive because many teams already use them, understand them, or can deploy them at relatively low cost.
A version-control repository can provide:
A history of each committed revision
User and timestamp records
Commit messages that act as a change log
Tags or branches for releases and design variations
The ability to restore an earlier file
Centralized or remote access
Self-hosting options
Access permissions
A process for reducing uncontrolled file overwrites
These capabilities address familiar engineering questions: Which file is current? Who changed the model? Can we restore the previous revision? How do we preserve an approved release?
In a Reddit discussion titled “I’m thinking of using Git to manage CAD drawings with a revision change log”, the original poster described a similar objective: preserving CAD revisions with a change log, maintaining approved snapshots, and storing associated formats such as PDF, STEP, and image files. This is a realistic use case when the repository acts as a controlled archive rather than the primary environment for daily CAD collaboration.
What recent research says about CAD version control
The limitations of CAD version control extend beyond one discussion or software platform.
Distribution of versions across users and organizational boundaries
The study argues that CAD version control is not merely a storage problem. It also involves traceability, dependencies, collaboration, access control, and the way people describe and interpret design changes.
This helps explain why teams still improvise with folders, filenames, spreadsheets, repositories, and manually maintained change logs. A tool may preserve every file revision while leaving the team to manage the relationships and engineering meaning around those files.
When Git or SVN can work for CAD
Git or SVN may be sufficient when most of the following are true:
One designer controls most file changes.
The team is small and technically experienced.
Files are independent or have simple, stable references.
The repository is mainly used for approved release snapshots.
Two people rarely need to edit the same CAD file simultaneously.
Visual comparison is performed manually in the CAD application.
Change approval is handled outside the repository.
Suppliers do not need controlled browser-based access.
The team can maintain clear naming, tagging, and locking rules.
The overhead of formal PDM would exceed the current need.
For example, an approved revision package could include:
Release content
Example file
Purpose
Native assembly
gearbox-assembly.SLDASM
Preserves the editable assembly
Native parts
gearbox-housing.SLDPRT, gearbox-shaft.SLDPRT
Preserves the referenced component files
Released drawing
gearbox-drawing.pdf
Provides an accessible approved drawing
Neutral CAD export
gearbox-export.step
Supports manufacturing and CAD interoperability
Change log
CHANGELOG.md
Records what changed and why
The commit or tag can identify the approved revision and record which files belong to the release. This works well when the repository is used as a controlled release archive.
The difficulty begins when the repository becomes responsible not only for archiving releases but also for coordinating active design work across multiple engineers and interdependent CAD files.
Why CAD files are different from source code
CAD files are commonly binary
Git is highly effective at tracking text because it can show exact lines that were added, deleted, or modified. A source-code diff might show:
- hole_diameter = 10
+ hole_diameter = 12
A change to a native CAD file may instead appear only as:
Binary file changed
Git can use attributes and external conversion tools to generate specialized diffs for some non-text formats. However, these require additional configuration and suitable format-aware software. Git itself does not understand CAD geometry.
It cannot automatically explain whether:
A hole diameter changed
A feature was removed
Material properties were updated
A component moved within an assembly
A drawing dimension changed
A referenced part was replaced
A file changed without a geometry change
Git knows that file content differs. It does not inherently understand the engineering meaning of the difference.
CAD changes usually cannot be merged like code
Two developers can often modify different lines in the same source file and merge both sets of changes. Native mechanical CAD models rarely work that way.
Suppose one engineer changes a mounting-hole pattern while another changes the wall thickness, both starting from the same revision. The result is usually two different binary versions of the same part. Git cannot normally combine them into one valid model containing both changes.
The team must choose one version, manually reproduce one change in the other model, or prevent the conflict through locking and ownership. This is why a managed check-in/check-out workflow is often more useful for native CAD data than software-style parallel merging.
Check-in/check-out helps prevent multiple engineers from creating conflicting versions of the same non-mergeable CAD file.
CAD projects contain dependencies
A CAD project is rarely one independent file:
Main assembly
Subassembly A
Part A1
Part A2
Subassembly B
Drawings
External references
Manufacturing exports
These files are not independent. Renaming a component, moving a file, restoring an older part, or exporting from the wrong revision can affect assemblies, drawings, and manufacturing data across the wider project. Git and SVN track repository files and directory structures, but they do not automatically understand the engineering relationships among assemblies, parts, drawings, and derived outputs.
A file hash changing is not the same as a system understanding that geometry, metadata, a feature tree, a reference, or an approval status changed.
Does Git LFS solve CAD version control?
Git LFS solves part of the storage problem. It does not solve the full CAD workflow problem.
Git Large File Storage replaces large files in the Git repository with text pointers while storing the binary content on a remote server. A team can configure it to track relevant extensions:
A user experience designed for non-technical participants
đź“Ś
Git LFS makes Git more practical for storing large CAD files, but it does not make Git CAD-aware.
Is SVN better than Git for CAD?
SVN may be easier than Git for some traditional CAD workflows because it uses a centralized repository model and provides explicit file locking.
Apache Subversion supports lock-before-edit workflows: files can be marked as requiring a lock and presented as read-only until a user acquires one. It also applies commits atomically, attaches one log message to the complete revision, and uses binary differencing when transmitting and storing successive revisions.
These characteristics can make SVN attractive when:
The team wants one central source of truth.
CAD files cannot be merged.
Only one person should edit a file at a time.
Engineers prefer checkout and commit over branching and merging.
The repository contains many binary files.
The organization already maintains SVN infrastructure.
However, SVN remains a general-purpose version-control system. It does not inherently understand CAD geometry, assembly structures, drawings, visual design differences, or engineering release states.
SVN may be more natural than Git for centralized binary-file versioning and locking, but it is still not a CAD-aware PDM system.
Git vs Git LFS vs SVN vs cloud storage vs PDM
Capability
Git
Git LFS
SVN
Cloud storage
CAD-aware PDM
Historical versions
Yes
Yes
Yes
Usually
Yes
Restore earlier versions
Yes
Yes
Yes
Usually
Yes
Change notes
Commits
Commits
Revision logs
Limited
Usually
Large binary handling
Limited
Better
Good
Good
Varies
File locking
Workflow-dependent
Compatible setups
Built in
Limited
Usually
Text diff and merge
Strong
Strong for text
Supported
No
Not the main purpose
Native CAD merge
No
No
No
No
Usually limited
Geometry comparison
No by default
No by default
No by default
No
Varies
Assembly/reference awareness
No
No
No
No
Varies
Browser CAD viewing
No
No
No
Usually no
Varies
Approval/release workflow
Manual
Manual
Manual
Limited
Varies
Supplier review
Repository access
Repository access
Repository access
Shared links
Controlled; product-dependent
Ease for non-technical users
Low
Low
Medium
High
Usually higher
Self-hosting
Yes
Yes
Yes
Depends
Depends
A PDM system should not automatically be assumed to provide every capability in the final column. CAD-format support, relationship detection, geometry comparison, BOM functionality, and approval workflows vary significantly by product.
Three practical CAD version-control scenarios

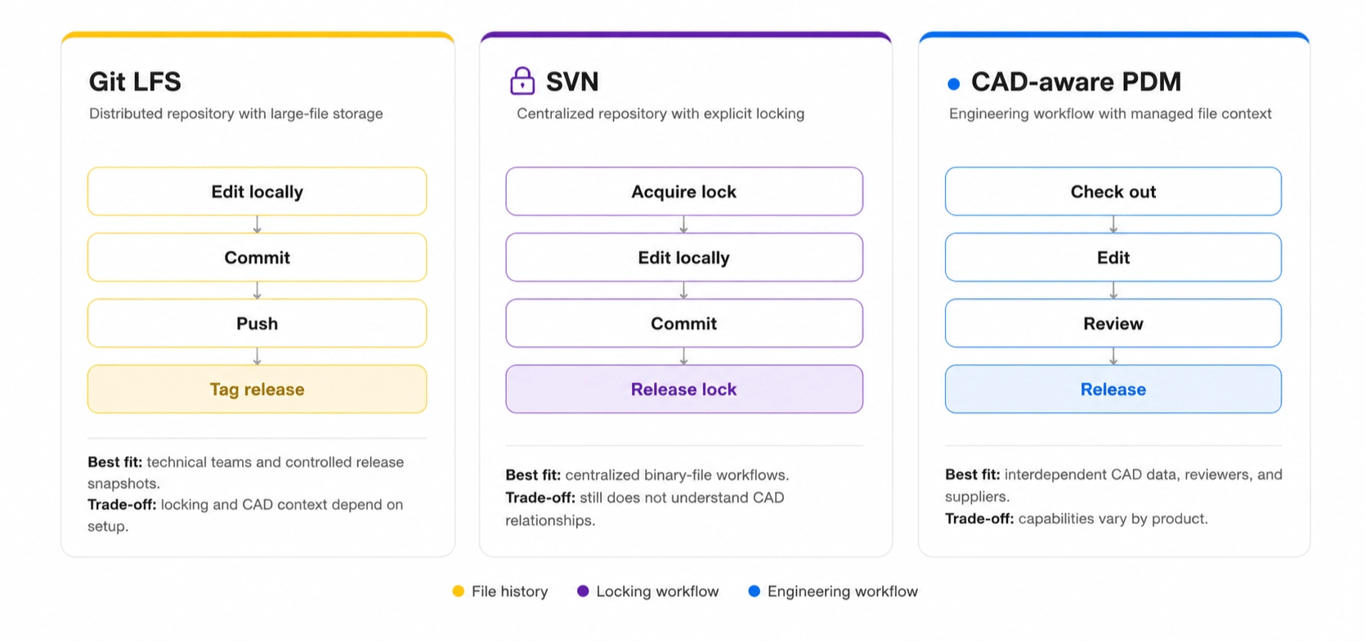

Git LFS uses a distributed commit-and-push workflow, SVN emphasizes centralized locking, and CAD-aware PDM adds check-out, review, and release steps.
Scenario 1: A solo designer archiving released revisions
Git LFS or SVN may be enough. Complete the design in the CAD application, export the approved PDF, STEP, and manufacturing files, commit the complete package, add a revision tag, record the reason for the change, and maintain a separate off-site backup.
The repository acts as a controlled release archive, not a real-time collaboration platform.
Scenario 2: A small technical team working on simple files
Git LFS or SVN may still work if the team introduces strict controls:
Lock non-mergeable files before editing.
Avoid simultaneous edits to the same model.
Assign ownership of assemblies and parts.
Define naming, folder, and release rules.
Commit related files together.
Validate references before release.
Avoid uncontrolled renaming or moving.
Train every participant in the repository workflow.
Consider a four-person SOLIDWORKS team working on a 350-part assembly. If two engineers edit the same housing from one revision, Git LFS can store both binary files, but it cannot combine a hole-pattern change with a wall-thickness change or identify which drawings also need updating. The software cost may remain low, but the team pays through process discipline, training, and manual coordination.
Scenario 3: A multi-CAD team collaborating with suppliers
A PDM system becomes more appropriate when multiple people work on interdependent files, assemblies contain many references, teams need controlled supplier collaboration and version visibility, non-CAD users need browser review, and files require formal release status.
At this point, the apparent savings from a general-purpose repository can be offset by manual administration, broken references, duplicated files, user training, and release risk.
How to decide whether Git or SVN is still enough
Git or SVN may still be sufficient if:
You mainly archive approved releases.
Your CAD structure is simple.
One person controls most changes.
Everyone understands version-control concepts.
You do not need browser-based CAD review.
You do not need design-aware comparison.
You can manage approvals outside the repository.
Suppliers do not need controlled direct access.
You accept manual management of file relationships.
Consider moving to PDM if:
Engineers frequently overwrite one another’s work.
Released data must be separated from work in progress.
Auditability and approval history matter.
Repository operations are a barrier for non-technical users.
Where CAD ROOMS fits

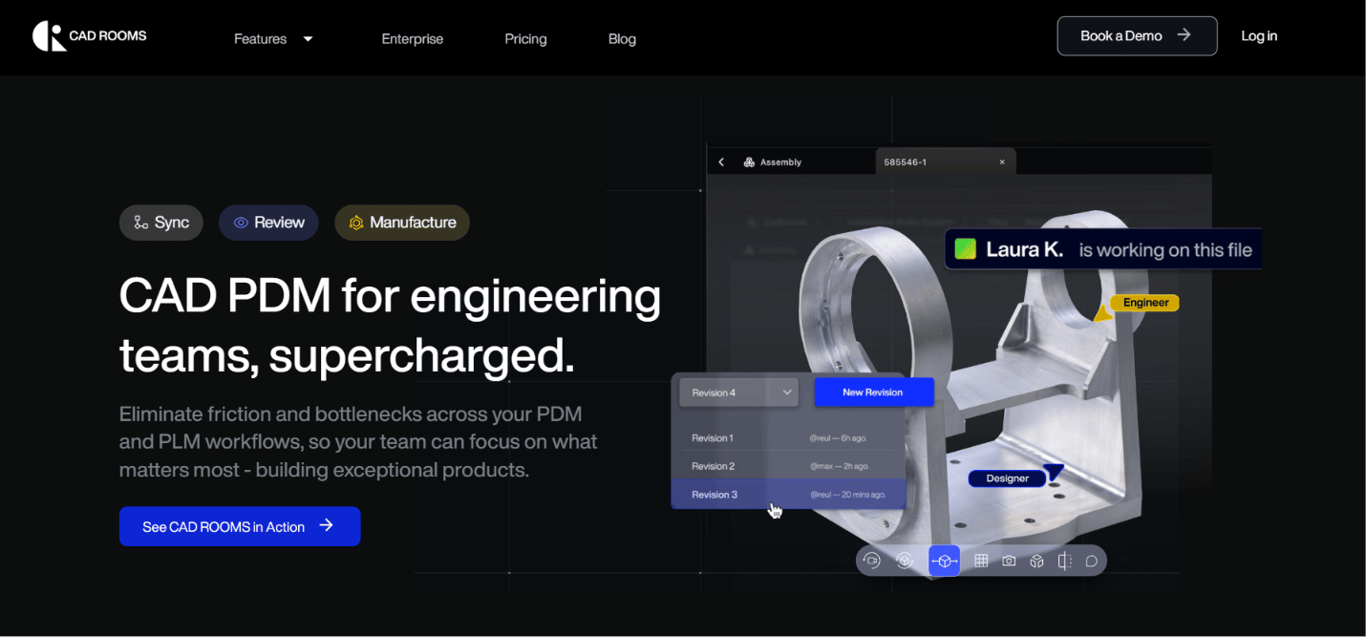

CAD ROOMS brings CAD revision history, file status, 3D review, and engineering collaboration into one cloud PDM workspace.
CAD ROOMS is relevant when a team has outgrown shared folders, spreadsheets, generic cloud drives, Git, or SVN, but does not want the infrastructure and implementation burden of a traditional on-premise PDM deployment. A structured PDM workflow for revision control, approvals, and release can replace many of the manual controls required by a general-purpose repository.
A team managing only a few independent files may still be better off with Git LFS or SVN. When assemblies, supplier reviews, and formal releases enter the picture, the most useful PDM capabilities are:
CAD file version history

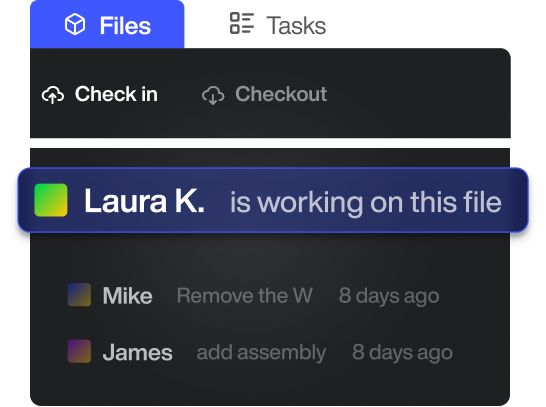

Check-in/check-out
Local CAD editing through the Desktop App
Multi-CAD file management
Browser-based design review
Design comments and controlled sharing
File relationships
Roles and permissions
Audit history
Collaboration with suppliers and external reviewers
Teams that primarily manage source code, text-based design files, or simple solo archives may still be better served by Git or SVN. The case for PDM becomes stronger when the problem is no longer “How do we store versions?” but “How do we coordinate design data, people, references, reviews, permissions, and releases?”
Final answer: Can you use Git or SVN for CAD?
Yes. Git and SVN can manage CAD files at a basic file-version level. Git LFS improves large-binary handling, while SVN’s centralized repository and locking model may feel more natural for binary CAD workflows.
But neither system automatically understands CAD geometry, assembly dependencies, drawing relationships, release status, supplier review, or engineering approvals.
Use Git or SVN when you mainly need technical file history and can manage the engineering process manually.
Use PDM when you need the system to support the engineering process around the files.
Frequently asked questions
Can Git manage SOLIDWORKS files?
Yes. Git can store and version SOLIDWORKS files, and Git LFS can make large .SLDPRT, .SLDASM, and .SLDDRW files more practical to manage. Git does not automatically understand SOLIDWORKS assemblies, references, features, or geometry changes. See our guide to SOLIDWORKS product data management in the cloud for a CAD-aware workflow.
Can Git LFS store CAD files?
Yes. Git LFS can track CAD file extensions and store the binary content outside the standard Git object database while retaining text pointers in Git. It improves large-file storage but does not add CAD-specific workflow capabilities.
Is SVN better than Git for CAD?
SVN may be easier for teams that prefer a centralized repository and lock-before-edit workflow. It handles binary revisions efficiently, but it remains a general-purpose version-control system rather than a CAD-aware PDM platform.
Can two engineers merge changes to the same CAD file?
Usually not in the way developers merge text code. Most native mechanical CAD files are binary, so independently edited models normally require manual reconciliation in the CAD application.
Can Git track CAD assemblies and references?
Git tracks repository files and paths, but it does not inherently understand that one file is an assembly and another is a referenced component or drawing. CAD-aware systems can expose these dependencies through features such as file relationships in the CAD Viewer.
Is Git suitable for CAD revision control?
It can be suitable for solo designers, technical teams, simple projects, and approved release archives. It becomes harder to manage as assemblies, users, approvals, and external collaboration increase.
Can Git be used only for approved CAD snapshots?
Yes. This is one of the most practical Git-for-CAD use cases. A team can commit complete release packages, add revision tags, and preserve native files, neutral formats, drawings, and change logs.
When should a team move from Git or SVN to PDM?
A move becomes appropriate when manual coordination, repository training, broken references, access control, release management, or supplier collaboration consumes significant engineering time or increases release risk. At this stage, teams may consider a cloud-based PDM platform such as CAD ROOMS to support check-in/check-out, file relationships, browser-based review, permissions, and external collaboration.
What is the difference between Git version control and PDM?
Git primarily tracks repository content and history. PDM is designed to manage engineering data and its operational context, including file relationships, check-in/check-out, permissions, review, release, and audit workflows.
Is PDM always necessary for CAD?
No. A solo designer or small technical team with simple files may not need PDM. The need depends on collaboration complexity, file relationships, compliance requirements, and how much manual process the team can reliably maintain.
Is CAD ROOMS an alternative to Git or SVN for CAD version control?
CAD ROOMS is an alternative for engineering teams that need more than basic file history. Version control in CAD ROOMS supports check-in/check-out, version history, file relationships, browser-based design review, permissions, and collaboration with suppliers or external reviewers. Git or SVN may still be more suitable for source code, text-based design files, or simple personal archives. CAD ROOMS becomes more relevant when a team needs the system to manage the engineering process around its CAD files.
