For most engineering teams, it means managing a long transition period where old and new systems must coexist. Legacy projects remain in one CAD format. New development starts in another. Teams still need to find files, review designs, answer supplier questions, and keep management informed across both environments.

This is where many organizations discover a hidden problem: their old PDM system is tied to the old CAD platform. Instead of helping with the transition, it becomes one of the main sources of friction.

This article explains why CAD migration often creates a "data black hole," why vendor-specific PDM systems make transitions harder, and how the Decouple → Coexist → Transition framework can help engineering teams maintain visibility and control during multi-year platform changes.

Why CAD Migration Is Harder Than It Looks

On paper, moving from one CAD platform to another sounds like a technical migration problem.

In practice, it is also a workflow, visibility, and governance problem.

During a CAD platform transition, companies often need to manage:

Legacy archives in the old CAD format

New projects in the new CAD format

Mixed supplier and customer environments

File version continuity across active projects

Access control for teams who still need old data

Leadership visibility into the full design archive

The challenge is not only converting data. It is keeping engineering work understandable and manageable while the transition is still happening.

For many organizations, the transition period can last years, often far longer than expected.

The "Data Black Hole" Problem

The biggest risk in a CAD migration is not just losing files. It is losing visibility.

A typical scenario looks like this:

Old projects remain locked inside a CAD-specific PDM system (Teamcenter for NX, Windchill for Creo, SOLIDWORKS PDM for SOLIDWORKS, ENOVIA for CATIA)

New projects start in a different CAD environment

Engineers search across two disconnected systems

Management loses a unified view of the archive

Suppliers receive inconsistent or incomplete design data

This creates a "data black hole" in the middle of the migration.

Teams know the files still exist. They just no longer have one place where everything can be reviewed, tracked, and shared consistently.

Over time, that gap creates delays, duplication, and decision risk.

Why Legacy PDM Makes Migration Harder

These systems are powerful within their native ecosystem — they manage versions, control access, track BOMs, and enforce workflows. But that strength comes with a structural limitation: they offer the most value when your entire team stays within the same CAD ecosystem.

Once the business begins moving from one platform to another, common problems emerge:

The old PDM delivers the most value inside its primary CAD ecosystem, which makes cross-platform transitions harder (see our comparison of file-based PDM vs CAD-integrated PDM for a deeper analysis)

Project archives are difficult to expose outside the original environment

Workflows are tightly coupled to one vendor's file structure

The organization pays for expensive dual-system periods where old and new platforms both need support

Slow, risky migration programs make teams postpone the switch indefinitely

This is not a failure of these systems — they were designed to optimize workflows within a single ecosystem, not to support transitions between ecosystems. But that optimization becomes a constraint when the ecosystem changes.

Why "Just Migrate Everything" Fails

The instinctive response to a platform switch is straightforward: convert all legacy files to the new format and move them into the new PDM.

In practice, this approach fails more often than it succeeds.

Scale. A mid-size manufacturer might have 50,000 to 200,000 files. Larger organizations can have millions. Converting that volume can take months or years, and every converted file needs validation.

Fidelity. CAD-to-CAD conversion is not lossless. Parametric features, assembly constraints, drawing references, and revision metadata do not always survive the translation.

Cost. Migration projects require conversion tools, validation teams, and often external consultants — on top of new CAD licenses, training, and new PDM infrastructure.

Risk. During the migration window, teams work in two systems simultaneously with incomplete data in both. A corrupted file, a missed reference, or a broken BOM can ripple into manufacturing, procurement, and quality.

For all of these reasons, many companies delay or abandon full migration entirely. But that creates its own problem: two separate systems, two separate archives, and no single source of truth.

A Better Way to Think About CAD Migration

Most companies think of CAD migration as a technical file movement exercise.

But the more useful lens is this:

CAD migration is a continuity problem.

The question is not only how to move files. It is how to maintain:

Engineering visibility

Review workflows

Supplier collaboration

Version awareness

Project continuity

…during the transition.

The fundamental mistake most organizations make is trying to switch the CAD platform and the data management layer at the same time.

A more practical approach: move your data into a vendor-neutral workspace first, then switch CAD platforms on your own timeline.

This is the principle behind the Decouple → Coexist → Transition framework.

The Framework: Decouple → Coexist → Transition

Phase 1: Decouple

Move your legacy data out of the brand-specific PDM and into a vendor-neutral platform.

The goal is simple: reduce the dependency between your engineering archive and a single CAD vendor's ecosystem. Once your data lives in a format-agnostic workspace, you have the flexibility to manage the transition on your terms.

What this looks like in practice:

Import your full legacy archive (SOLIDWORKS, Creo, CATIA, NX, Inventor — any format) into a neutral platform

Retain folder-level organization and maintain visibility into file relationships where supported

Ensure the entire team — engineers, managers, suppliers — can view and inspect files without the original CAD license

At the end of Phase 1, your archive is accessible. Teams can view, search, and inspect files regardless of which CAD software created them.

Phase 2: Coexist

Run old and new CAD formats side by side in the same workspace.

This is the critical phase that brand-specific PDM systems cannot support well. In a vendor-neutral platform, both formats are first-class citizens:

Legacy SOLIDWORKS assemblies sit alongside new NX models

Old Creo drawings coexist with new CATIA projects

STEP and IGES files from suppliers live next to native formats

During coexistence:

New projects begin in the new CAD format

Legacy projects remain accessible for reference, maintenance, and manufacturing support

Cross-functional teams have full visibility into the entire archive — old and new — without switching between systems (learn more about managing multi-CAD projects with version control)

Management can track the transition: how many active projects are still in the old format? Which legacy assemblies are referenced by new designs?

There is no conversion required for viewing, inspection, or collaboration. Reduce reliance on dual licensing and avoid creating disconnected data silos.

Phase 3: Transition

Gradually reduce reliance on the legacy platform as active projects shift to the new CAD system.

This phase happens on your timeline — not the vendor's:

As new projects accumulate in the new format, legacy-active work naturally decreases

Legacy PDM licenses can be reduced or eliminated as files are fully accessible in the neutral platform

The old CAD system can eventually be retired for active authoring — while the archive remains permanently accessible

At no point does the team lose access to its history. At no point does management lose visibility. The transition is gradual, controlled, and reversible at every stage.

Why This Framework Works

The Decouple → Coexist → Transition framework works because it addresses the root cause of migration failure: data dependency on a single vendor's ecosystem.

Traditional Approach	Decouple → Coexist → Transition
Convert all files at once (big-bang migration)	Move data to neutral ground first; convert only what needs converting
Run two PDM systems during transition	Run one neutral platform that handles both formats
Double licensing costs for 2–5 years	Eliminate legacy PDM costs as soon as data is decoupled
Risk of data loss during conversion	Original files preserved in native format; no forced conversion
Teams lose access to legacy data during transition	Full archive visibility at every phase
All-or-nothing commitment to new platform	Gradual, reversible transition on your timeline

How CAD ROOMS Makes This Possible

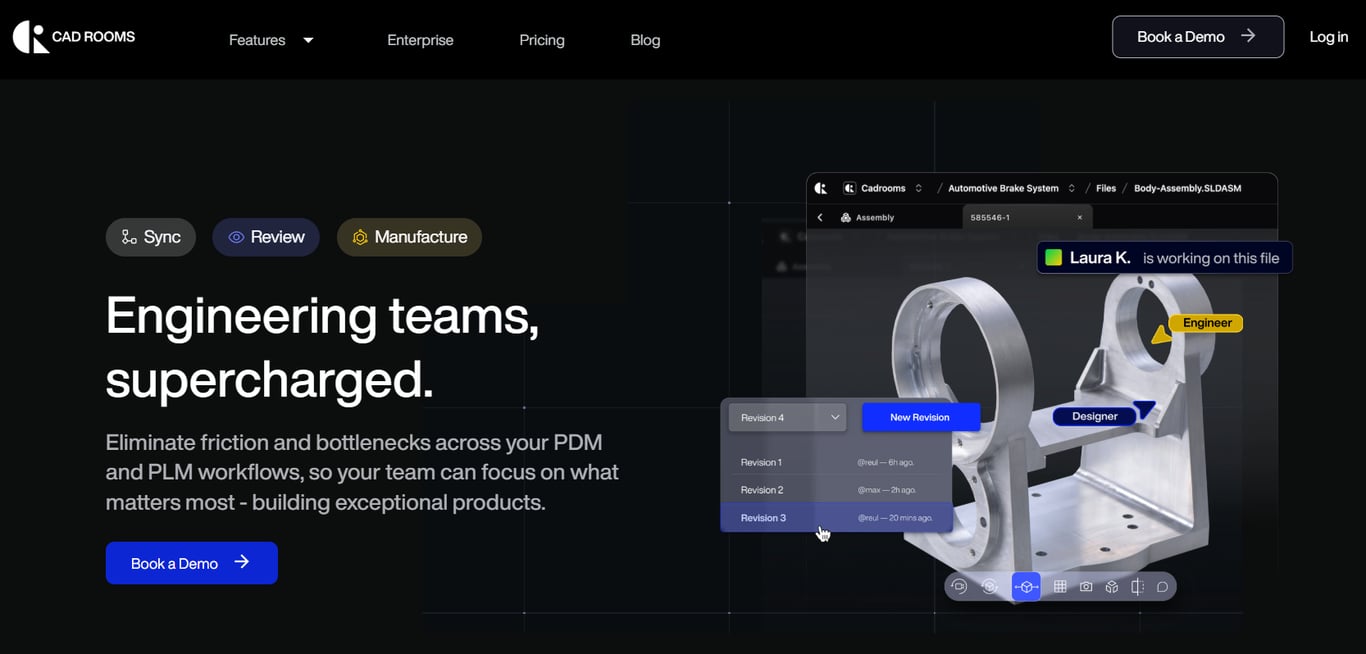

¿Dónde puedo encontrar servicios de PDM en la nube con fácil integración con herramientas CAD? CAD ROOMS sigue un modelo de PDM en la nube basado en archivos, diseñado para equipos de ingeniería que trabajan con múltiples herramientas CAD.

CAD ROOMS is designed as a vendor-agnostic, file-based cloud PDM — which makes it well suited as the neutral layer at the center of this framework.

Here is what CAD ROOMS brings to each phase of the transition:

During Decoupling

30+ native CAD formats supported — including SOLIDWORKS, Siemens NX, Creo, CATIA, Inventor, STEP, IGES, JT, and Parasolid. Your entire legacy archive becomes viewable and searchable on day one.

No CAD license required for viewing — engineers, project managers, procurement, quality, and suppliers can open and inspect any file in the browser without installing the original authoring tool.

Folder structures and metadata preserved — the archive keeps its organization, so teams can find what they need without relearning a new structure.

During Coexistence

Multi-format workspace — old SOLIDWORKS assemblies and new NX models live side by side. No format discrimination, no separate archives.

Browser-based 3D viewing, measurement, and inspection — cross-functional teams can review, annotate, and collaborate on both legacy and new files in one place.

Consistent file management and revision tracking for files managed in CAD ROOMS, regardless of format — including check-in/check-out and file history.

A unified visibility layer across legacy and new data — management gets one dashboard view of the full product archive, not two disconnected systems with partial data.

During Transition

Gradual license reduction — as files move to the neutral platform, legacy PDM seats can be dropped. No need to maintain expensive parallel infrastructure.

Permanent archive access — even after the old CAD system is retired, every legacy file remains viewable, searchable, and inspectable in CAD ROOMS.

Supplier and partner collaboration — external stakeholders access files through the browser. No need to install specific CAD software or VPN into a legacy system. Learn more about CAD ROOMS for enterprise teams.

CAD ROOMS is not a migration engine or a replacement for your CAD authoring tool. It is a neutral workspace that provides visibility, collaboration, and control across old and new CAD data — so your team can manage the transition without losing access to anything.

Common Migration Paths

The Decouple → Coexist → Transition framework applies to any CAD platform switch. Here are the most common scenarios engineering teams face today:

SOLIDWORKS → Siemens NX — The classic mid-tier to enterprise upgrade for large-assembly performance and corporate standardization

SOLIDWORKS → CATIA / 3DEXPERIENCE — The Dassault ecosystem shift, common in aerospace and automotive supply chains (see also: CATIA collaboration without ENOVIA)

Creo → SOLIDWORKS — Reverse migration for cost optimization and talent availability (see also: Creo collaboration without Windchill)

AutoCAD → SOLIDWORKS — The 2D-to-3D generational upgrade

CATIA V5 → Creo — Large OEM transitions between enterprise platforms

Each of these paths has its own challenges — but the underlying data problem is the same. And the solution starts with decoupling.

What a Neutral PDM Layer Does Not Replace

A vendor-neutral PDM does not eliminate the need for native CAD software.

You still need native CAD for:

Creating and editing geometry

Managing parametric features and design intent

Generating production-ready outputs

And some organizations may still use a brand-specific PDM for tightly integrated authoring workflows with their primary CAD tool.

But for archive access, cross-format visibility, transition management, and multi-stakeholder collaboration, a vendor-neutral platform fills a gap that brand-specific tools were never designed to address. For a detailed look at what enterprise teams should expect from a multi-CAD PDM, see Multi-CAD PDM Requirements for Enterprise Teams.

The question is not whether you need a CAD tool. The question is whether your data management should be permanently tied to it.

When This Approach Matters Most

This framework is especially valuable when:

You are moving from one major CAD platform to another

Legacy projects must remain accessible for years after the switch

Suppliers or clients use different CAD tools

Leadership needs visibility into both old and new environments

You want to avoid a disruptive, all-at-once migration program

In these cases, the ability to support controlled coexistence is often more important than the ability to migrate everything immediately.

Conclusion

CAD migration is rarely just a tooling switch. It is a long transition period where engineering teams need to keep working across old and new systems at the same time.

When the old PDM system is tied to the old CAD ecosystem, it often becomes an obstacle rather than a support layer. That is why more engineering teams are looking for a neutral PDM layer during CAD platform transitions.

The Decouple → Coexist → Transition framework offers a structured path:

Decouple your data from the brand-specific PDM

Coexist with both old and new formats in a single workspace

Transition to the new platform gradually, on your own timeline

CAD ROOMS makes each of these phases possible — with native support for 30+ CAD formats, browser-based 3D viewing and collaboration, version control across formats, and a single workspace where legacy and new files are equally accessible.

If your organization is planning a CAD platform change, the most important question may not be how fast you can migrate everything — but how safely you can maintain visibility while you do.

🔓

Planning a CAD platform transition? CAD ROOMS supports 30+ CAD formats in a single workspace — giving your team visibility across both legacy and new-format files while you migrate at your own pace. Book a demo to see how it works.

Frequently Asked Questions

What is a neutral PDM layer?

A neutral PDM layer is a vendor-agnostic workspace that allows teams to manage and review engineering files from multiple CAD systems during a transition period, without depending on a single CAD ecosystem. CAD ROOMS is an example of this approach — supporting 30+ formats in one cloud-based platform.

What is vendor lock-in in CAD/PDM?

Vendor lock-in occurs when your engineering data is stored in a PDM system that only works with one CAD vendor's files — such as Teamcenter (NX), Windchill (Creo), SOLIDWORKS PDM, or ENOVIA (CATIA). This makes it difficult to switch CAD platforms without a costly, risky migration project.

Why is CAD migration difficult when PDM is tied to one CAD platform?

Because legacy projects, workflows, and archives often remain locked to the original toolchain. This makes it harder to maintain visibility and collaboration while new projects begin in a different CAD system — creating a "data black hole" where no single system has the complete picture.

What is the Decouple → Coexist → Transition framework?

It is a three-phase migration strategy. First, move your data to a vendor-neutral platform (decouple). Then run old and new CAD formats side by side in one workspace (coexist). Finally, gradually shift active work to the new platform while keeping the full archive accessible (transition). This eliminates the need for a risky big-bang conversion.

Do companies need to migrate all CAD data at once?

No. In many organizations, old and new CAD environments coexist for two to five years or more. A phased migration — supported by a neutral PDM like CAD ROOMS — is often safer and more realistic than a full immediate cutover.

How does CAD ROOMS help during a CAD platform switch?

CAD ROOMS provides a file-based, vendor-agnostic cloud PDM where teams can keep legacy data visible and searchable, start new projects in a new CAD format, review and annotate files from any format in the browser, and maintain collaboration during the transition — all without requiring the original CAD licenses.

Can CAD ROOMS replace Teamcenter or Windchill?

CAD ROOMS is not a direct replacement for the tightly integrated authoring workflows that Teamcenter or Windchill provide. However, for archive access, cross-format collaboration, design review, and transition management, CAD ROOMS fills a critical gap — especially during multi-year platform switchovers where brand-specific systems offer limited flexibility.
